I just put in an order with Lake Bluff; they're based in IL and were helpful when on the phone. I'm not sure about the idler on the tensioner been the same as the idler on the assembly (they're both flat pulleys); the old pulley on the assembly (the broken one) is metal while the replacement one appears to be plastic. I'll measure the diameter and report back. You can apparently get the idler pulley on the assembly (see my next post) but you can't get the pulley on the tensioner so you have to buy the whole thing (Eugh). The Parts guy told me that there are mistakes in online manuals and that Land Rover don't allow the full catalog to be published online. I'll know more once the parts arrive and will update this thread accordingly.
Yes, it looks identical. The pulley also looks like the idler pulley but as I mentioned above I'll need to measure them to conform the diameter. Thank you for sharing this.

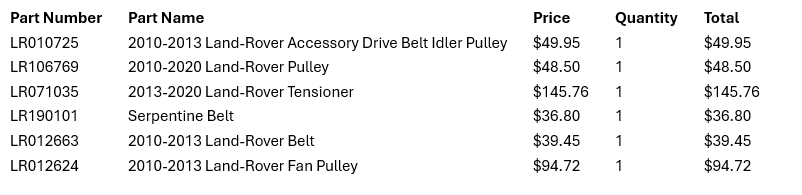

Here's the parts list and current pricing info (prices are rounded):

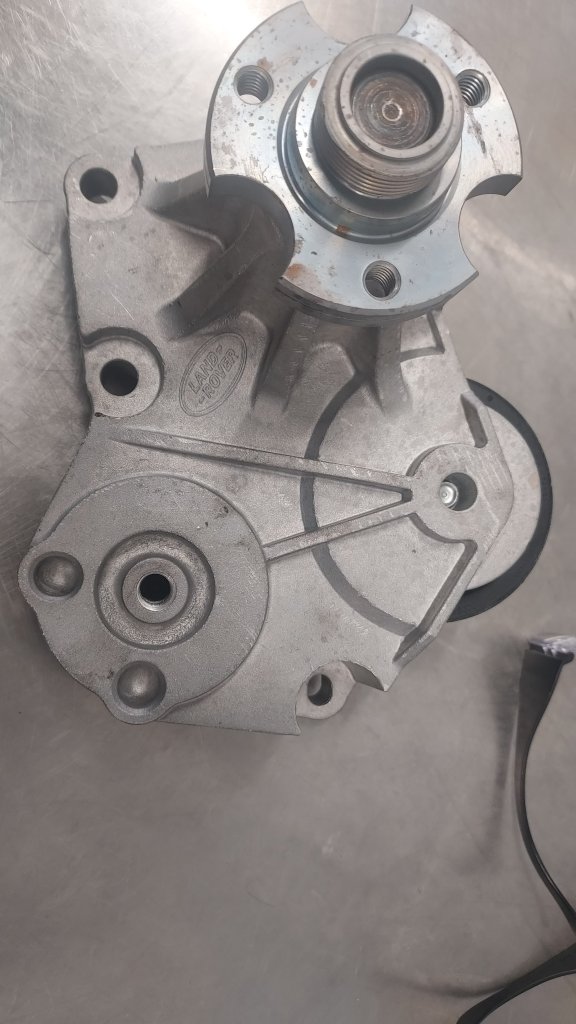

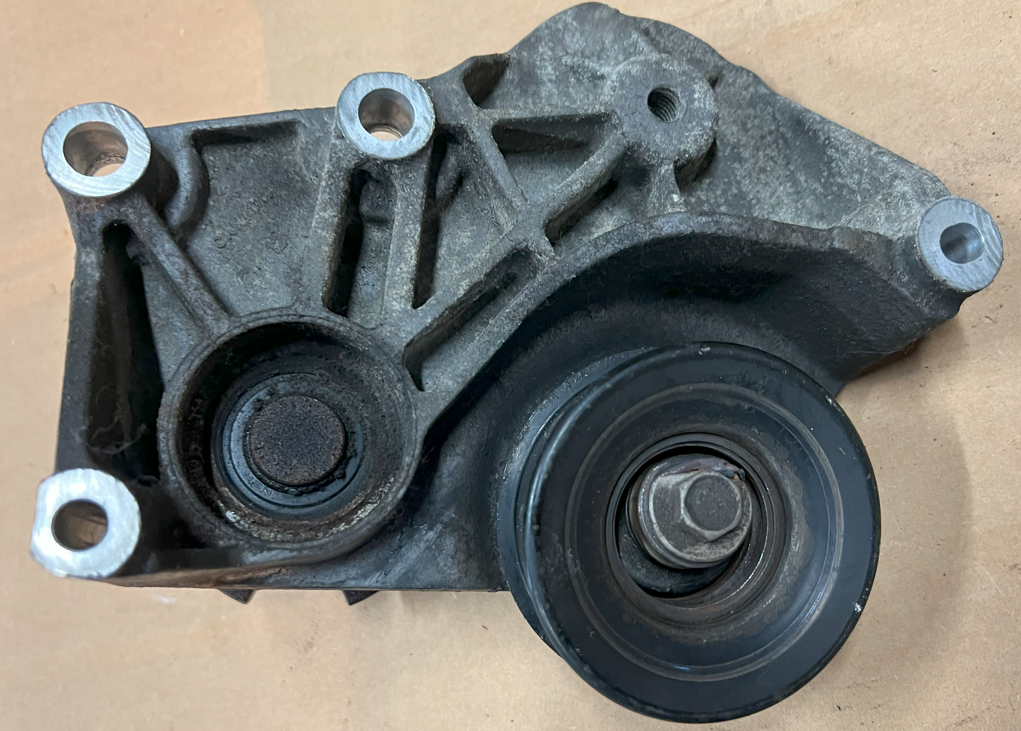

- The broken idler (the bracket I think is OK)
- LR035555 ($211 at Lake Bluff), this is the full assembly
- LR010725 is the pulley ($50)
- Bolt for the same idler
- Not seeing this yet, not needed if we buy the bracket!
- The other idler (preventative - above the alternator)
- LR106769 ($48 at Lake Bluff)

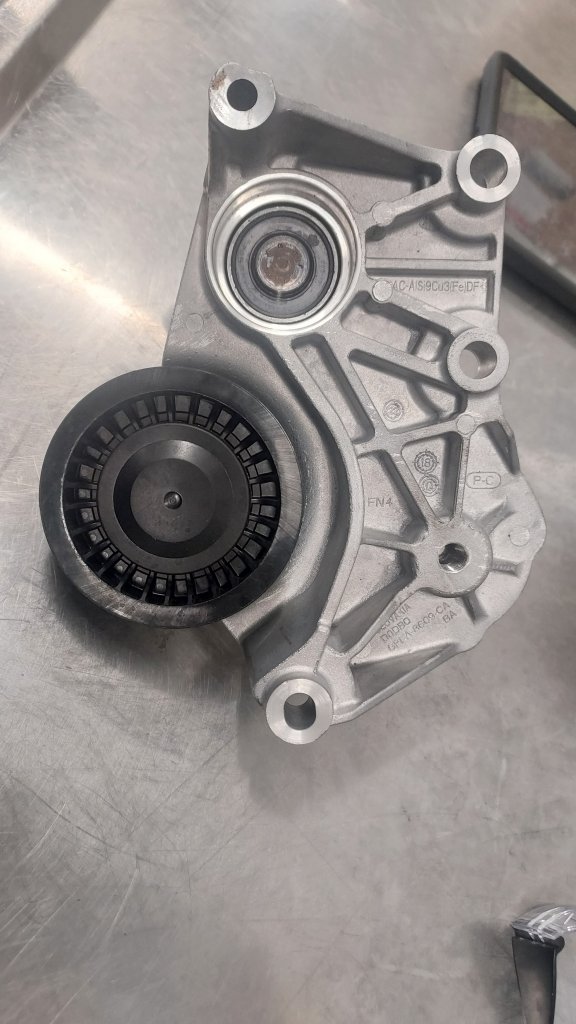

- The pulley on the belt tensioner (has a slight nick), have to buy the whole thing, grr!
- LR071035G ($167 at British Atlantic, $145 at Lake Bluff)
- New serpentine belt
- LR190101 ($37 at Lake Bluff)
- New viscous fan pulley belt
- LR012663 ($39 at Lake Bluff)
- New viscous fan pulley (spotted a little damage on it)
- LR012624 ($95 at Lake Bluff)
Comments posted above about this, in essence, no, it's all on the immediate to do list (along with timing chains)

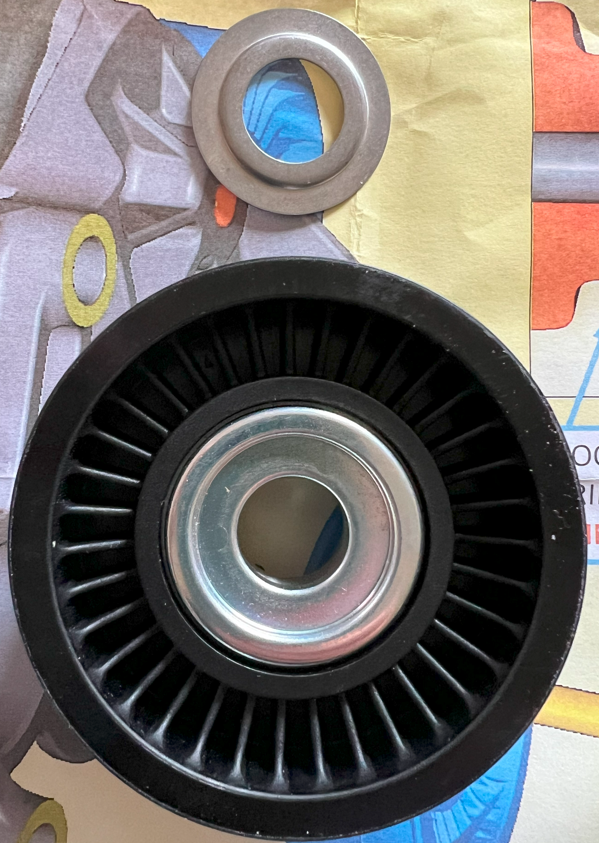

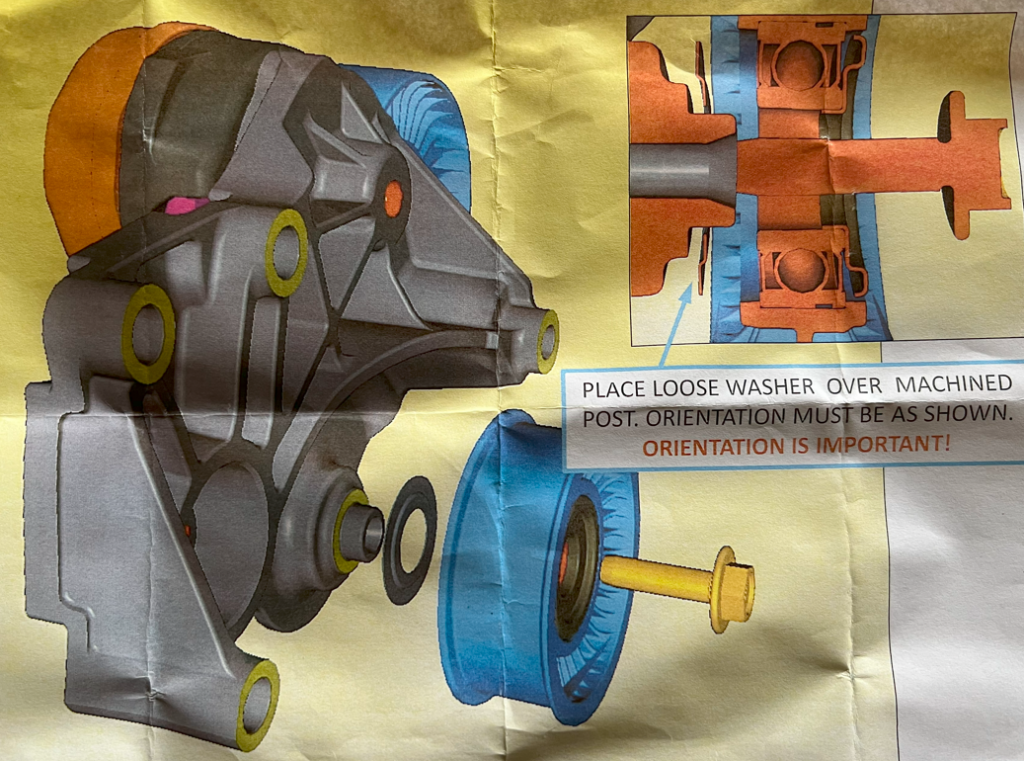

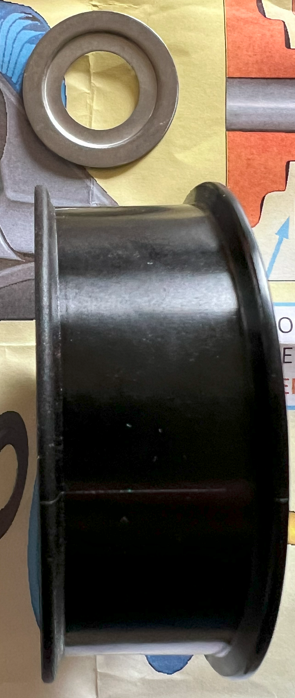

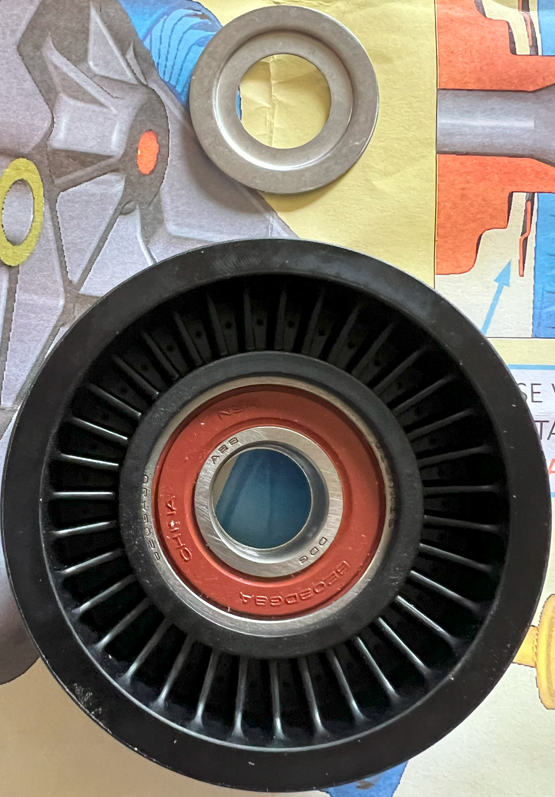

The new idler pulley (part# LR010725) which is situated behind the viscous fan pulley does indeed measure 70.1mm (which is the same as the original when I measure with my vernier calipers). The width is marginally less. The new pulley is made from Plastic while the old one was steel (the pulley shoulders are slightly bigger hence the width). Interestingly the new one comes with the following image that shows installation. The old bolt used to secure the pulley was damaged; I've been unable to find a replacement bolt (via my local Land Rover dealer) so secured a hardened bolt from the local hardware store; need to investigate that more closely.
More details to follow...

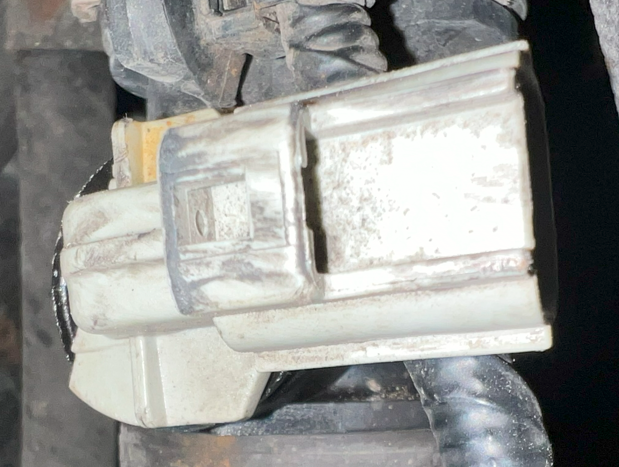

As mentioned previously; when the belt broke it also damaged the coolant temperature sensor found directly below the thermostat; here are some images; for reference you can see the AC compressor behind the connector:
The damage is to both the thermostat which can be found here at FCP Euro:
Or Land Rover:
parts.landroverlakebluff.com
My Local Land Rover dealership wanted to sell me a new engine wiring harness for $2435.1... to replace the single connector!

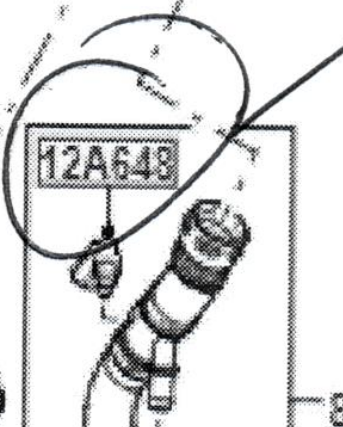

In sending me this quote they did me a huge favor and copied this image:

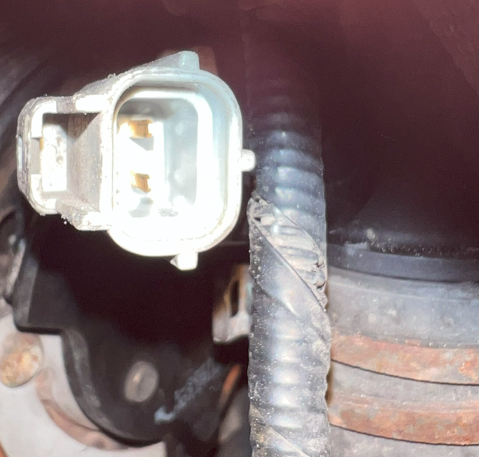

I have been looking for this wiring connector for weeks; looking in salvage yards etc... It turns out that this part number (12A648) registers as a Ford part number and fairly quickly I found parts on eBay and O'Reilly that looked correct... Ultimately I purchased this from O'Reilly, it's expensive for what it is but they had it in stock and I need to make progress (but it fits beautifully):

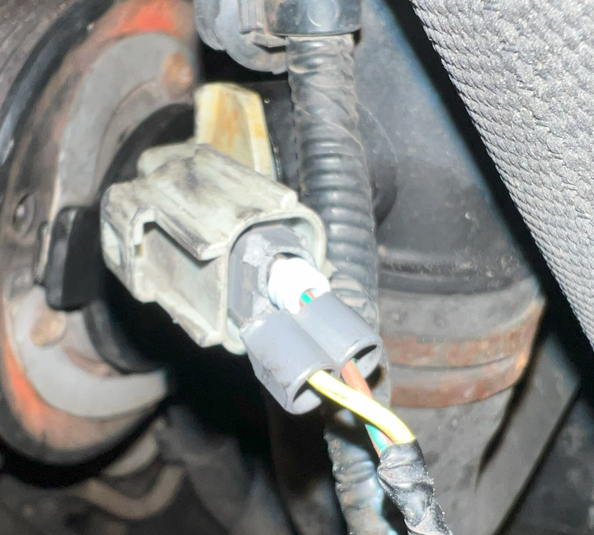

The plan is to splice this in to the wiring harness! More to follow once I can get back to this; for now I believe I have the parts that I need. I plan to make the repair, validate that things are OK and then start on the crossovers, water pump, timing chains, etc... I hope that this helps other people if they ever have this issue.
The damage is to both the thermostat which can be found here at FCP Euro:
Land Rover Coolant Temperature Sensor - Eurospare LR041442
Land Rover Coolant Temperature Sensor - Eurospare LR041442
www.fcpeuro.com
Or Land Rover:
4346360 - Coolant Temp Sensor - 2010-2024 Land Rover | Land Rover Parts Now
Coolant Temp Sensor - 4346360. Genuine Land-Rover® Parts & Accessories. Manufacturer Warranty. From the Dealership to your Door. Experts standing by.
parts.landroverlakebluff.com
My Local Land Rover dealership wanted to sell me a new engine wiring harness for $2435.1... to replace the single connector!
In sending me this quote they did me a huge favor and copied this image:
I have been looking for this wiring connector for weeks; looking in salvage yards etc... It turns out that this part number (12A648) registers as a Ford part number and fairly quickly I found parts on eBay and O'Reilly that looked correct... Ultimately I purchased this from O'Reilly, it's expensive for what it is but they had it in stock and I need to make progress (but it fits beautifully):
The plan is to splice this in to the wiring harness! More to follow once I can get back to this; for now I believe I have the parts that I need. I plan to make the repair, validate that things are OK and then start on the crossovers, water pump, timing chains, etc... I hope that this helps other people if they ever have this issue.
So you'll put the new idler in place, put it back together with a new serpentine belt, and make sure it runs? Then you'll take it all apart again to do the cooling system refresh?
